WEIGHT 68343 lb*
POWER 225 hp
TORQUE 79655 lb·ft*
EXTRACTION 27876 lbf*
MAX DIAM. 59 in*
MAX DEPTH 159 ft*
DMS STANDARD
* VARIES BASED ON CONFIGURATION

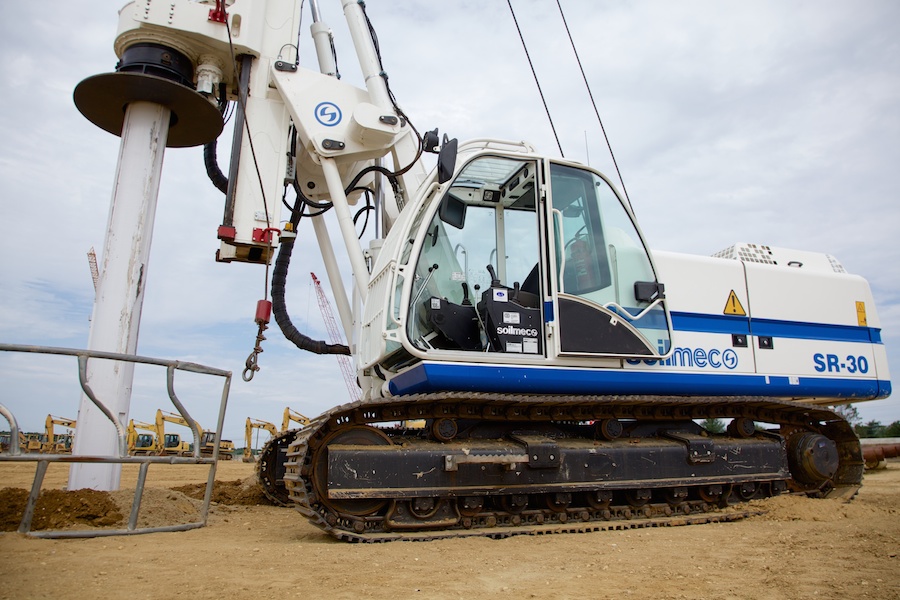

The SR-30 is one of the most popular Soilmec rigs in today's North American drilling landscape. Since its introduction 20 years ago as the first capable rig that could be transported in a single load, it has established a reputation as a versatile, easily-transportable workhorse. The latest model of the SR-30 continues this legacy, with a new Tier 4f engine, DMS, and unprecedented power and versatility in a self-assembling rig.
Applications:
- LDP cased bore piles with casing driven directly by rotary head; deep uncased bored piles stabilized by drilling fluid or dry hole
- LHR (Low Head Room) – large diameter bored piles;
- CFA (Continuous Flight Auger) piles by means of long auger string
- TJ (Turbojet®) - soil consolidation
- GK-5 (Diaphragm Wall) - with hydraulic guided grab
